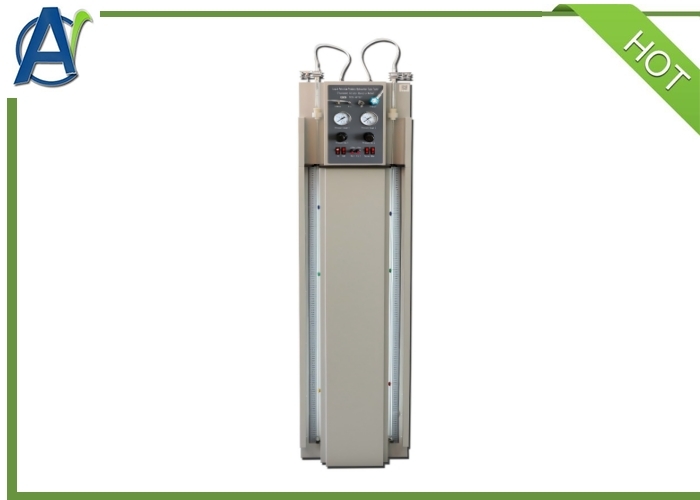

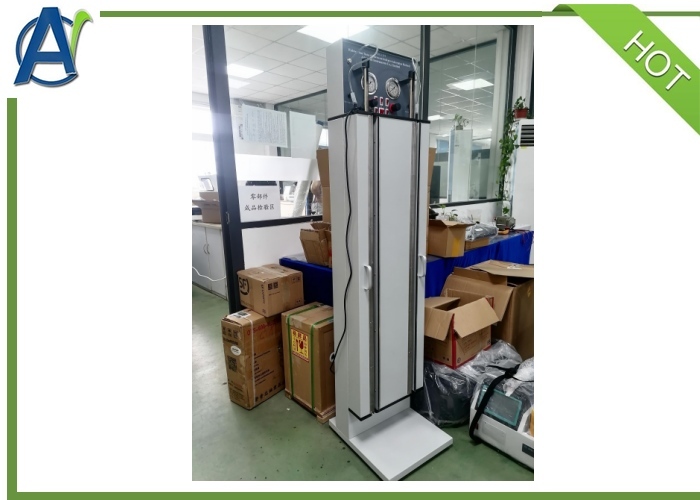

ASTM D1319 Liquid Petroleum Products Hydrocarbon Types Analyzer

Purpose and scope

The Liquid Petroleum Products Hydrocarbon Types Analyzer is designed and made as per the national standard of People's Republic of China GB / T 11132 -2008 Standard test method for hydrocarbon types in liquid petroleum products by fluorescent indicator adsorption. It is suitable to use fluorescent indicator to show main hydrocarbons in liquid petroleum products on silica gel adsorption column, calculate the volume percentage as quality indexes of motor fuel, aviation fuel and other fuel oil.
This Hydrocarbon Types Analyzer for Liquid is a special apparatus to determinate volume fraction of aromatics, olefins and saturated hydrocarbons in petroleum fraction.

1.This Liquid Petroleum Hydrocarbon Types Tester adopts an integrated vertical structure design, which does not need to be installed, and can be directly placed in a suitable position indoors for use.



2.The Hydrocarbon Apparatus for oil is composed of air circuit system, vibration part, ruler and scale indication, system lighting, ultraviolet light detection and other components, from silicone filling, vibration, sampling to reading out the test results in one go.



3.Two imported precision inner diameter glass tube adsorption columns are directly adopted, which is more convenient for users to use.



4.This Hydrocarbon Testing Instrument can be connected to an external vacuum pump for adsorption column cleaning, which solves the user's trouble of cleaning the adsorption column.







The Technical Specifications and Parameters



Operating Power supply	AC220V±10%, 50Hz
Voltage regulation range	0~400kPa
Electric vibrator	control two subsystems respectively
UV source tube	length 1220mm, wavelength 365 ± 5nm
Lights	nitrogen cylinder (or air compressor, compressed air cylinder);
Ambient temperature	5 ~ 35 ℃
Relative humidity	<85%
Overall dimension	350mm×400mm×1770mm
Maximum power consumption	600w
